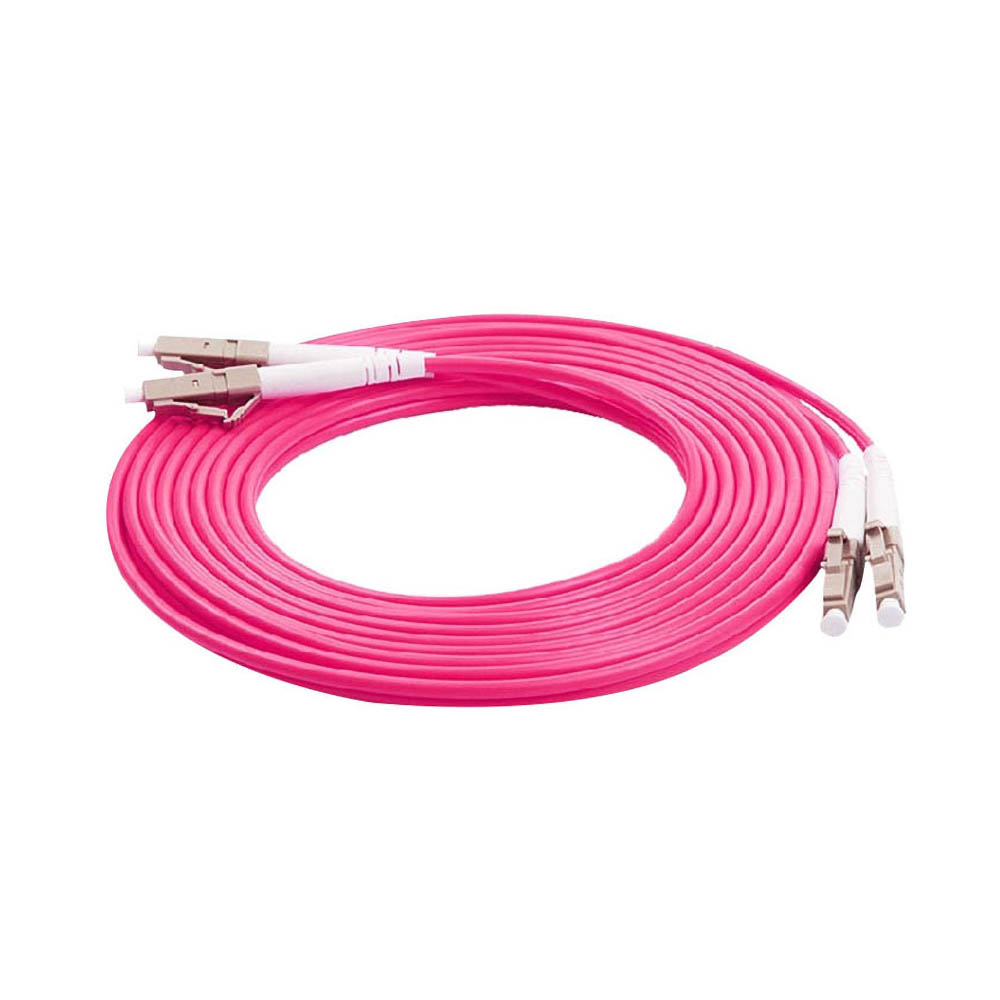

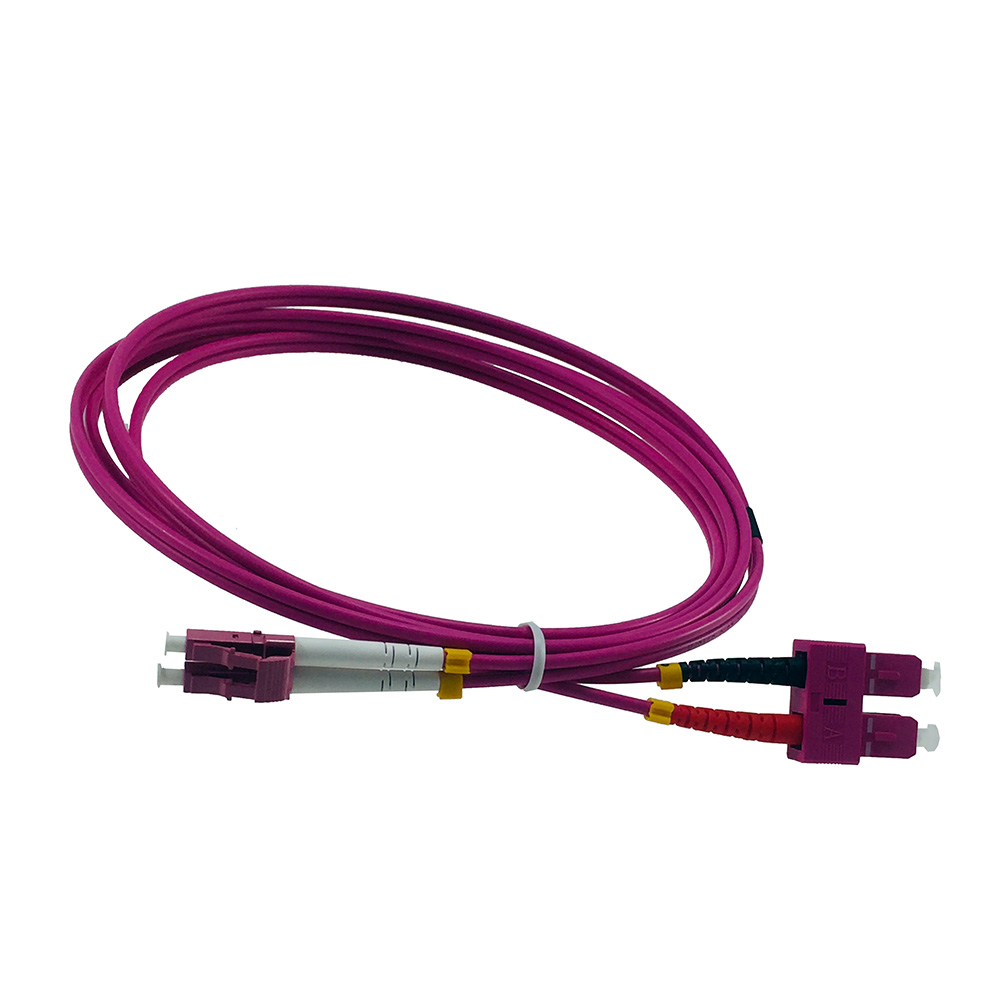

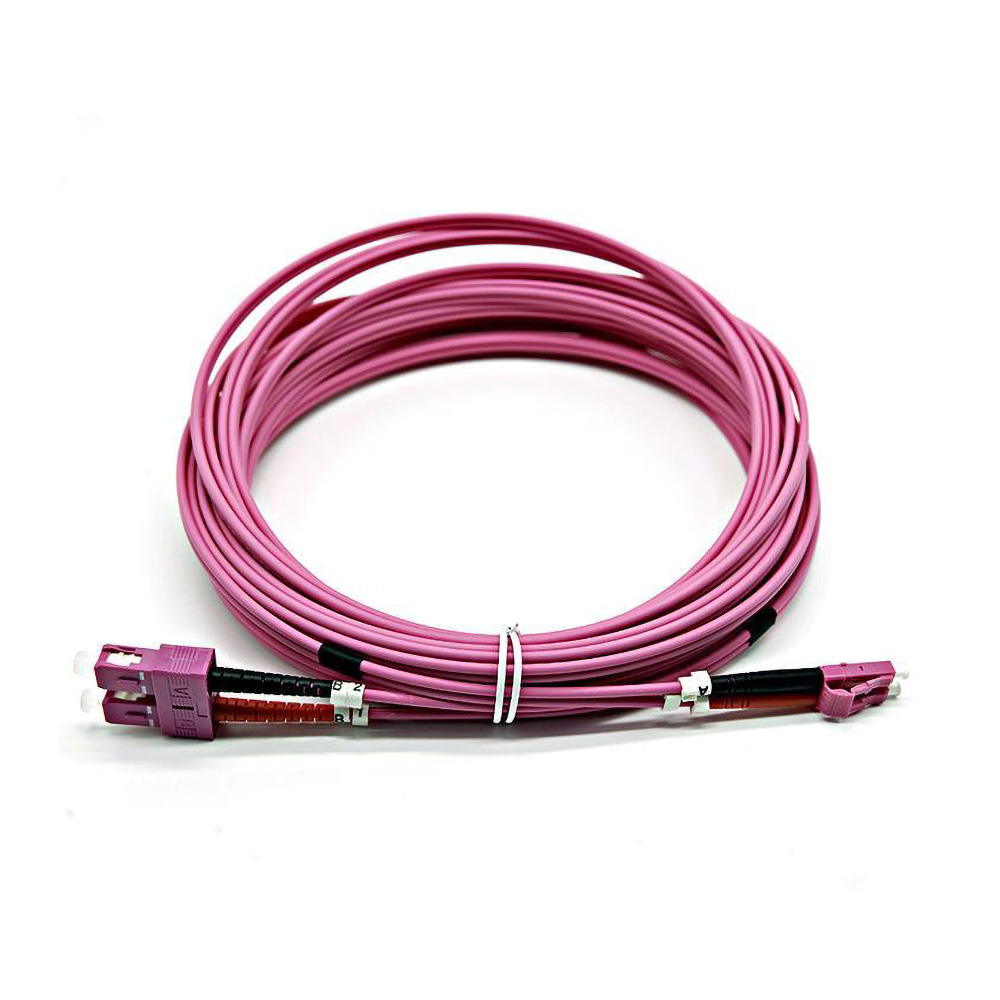

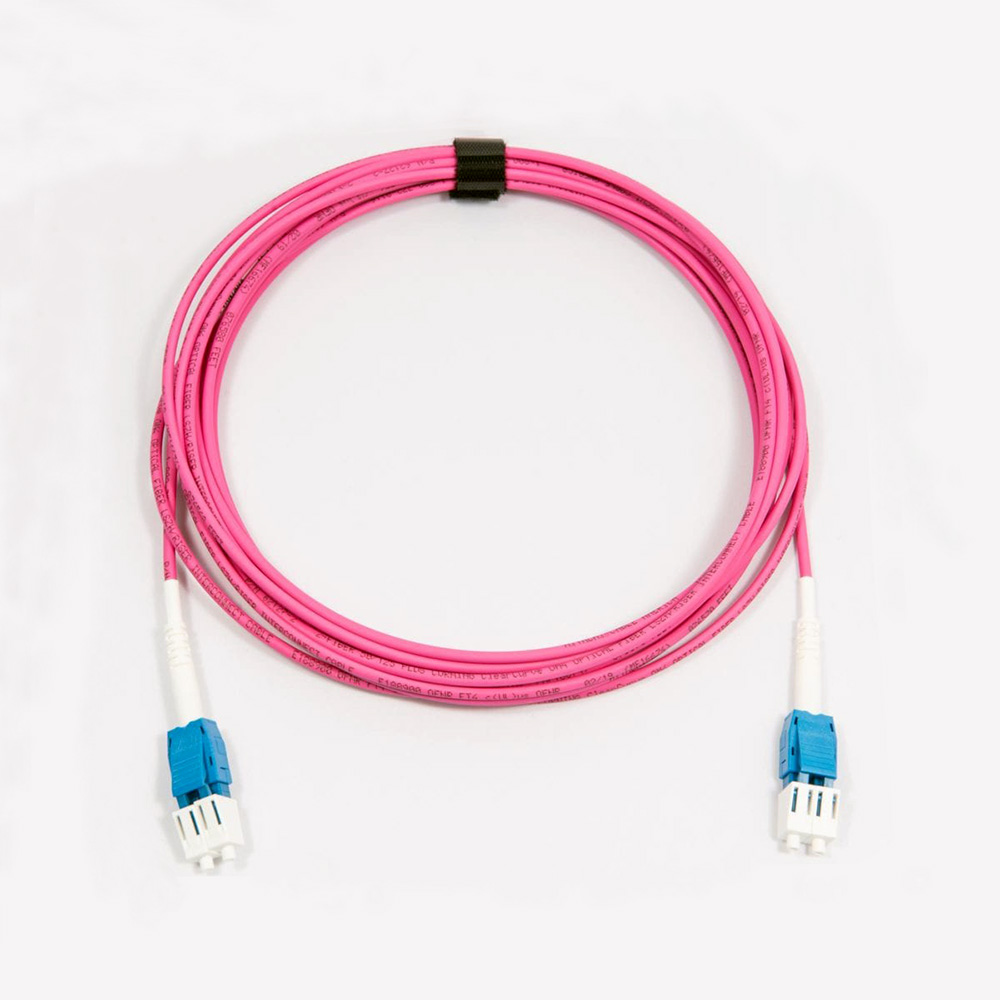

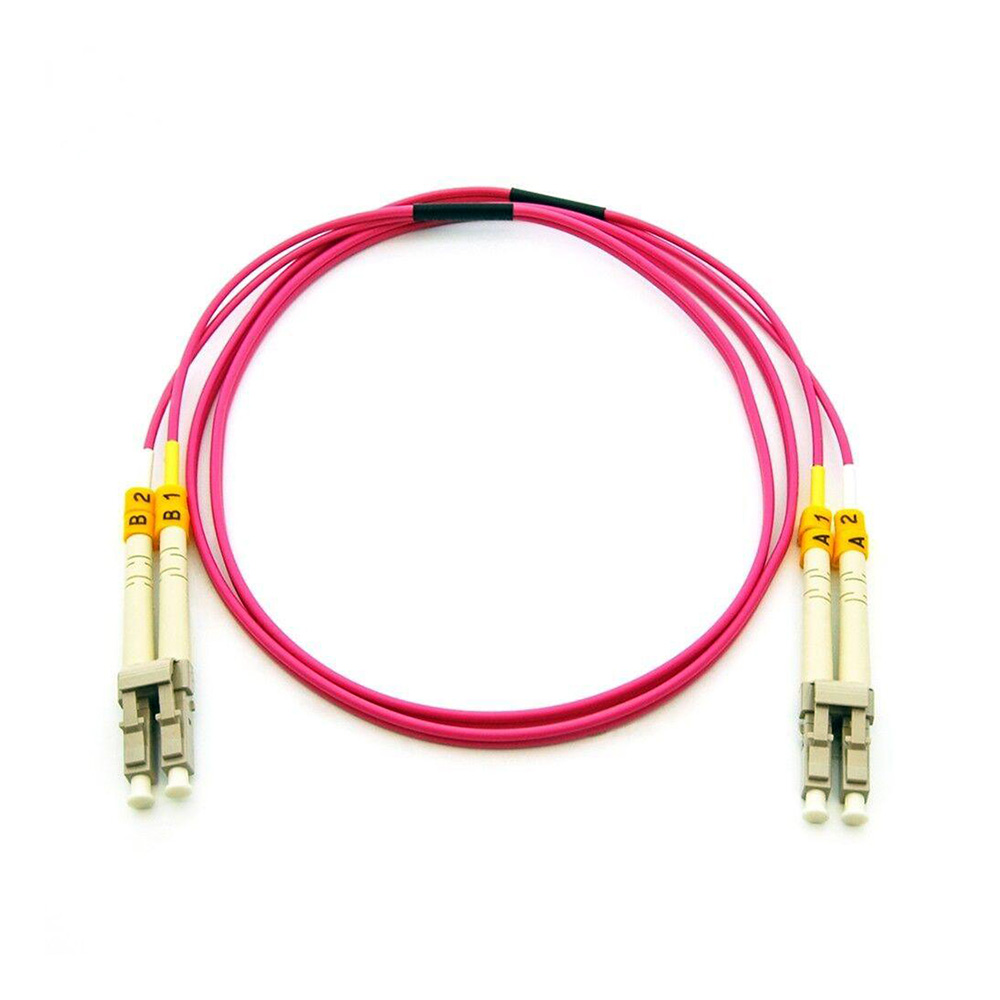

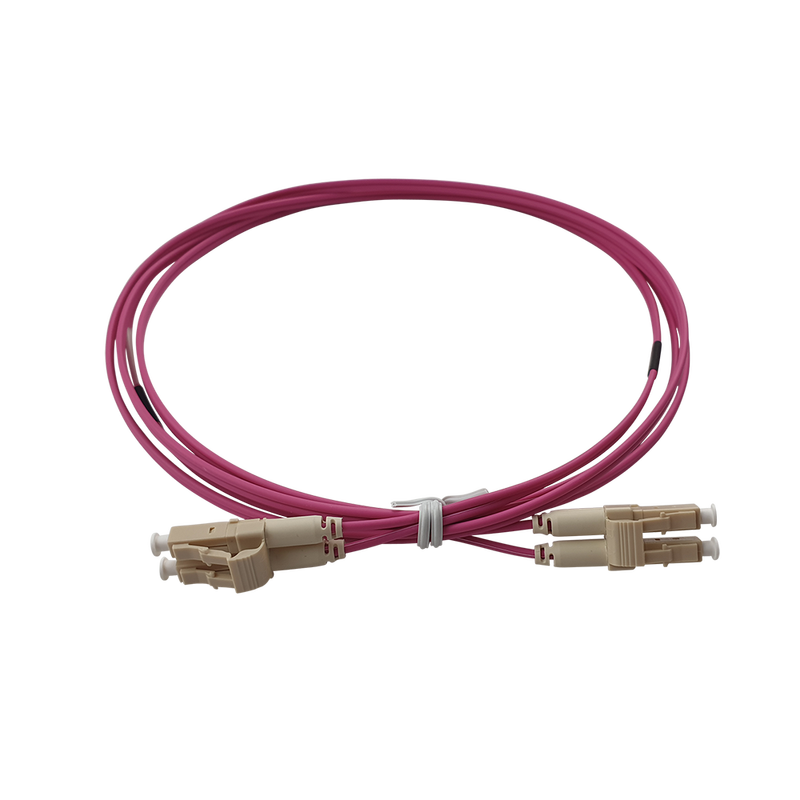

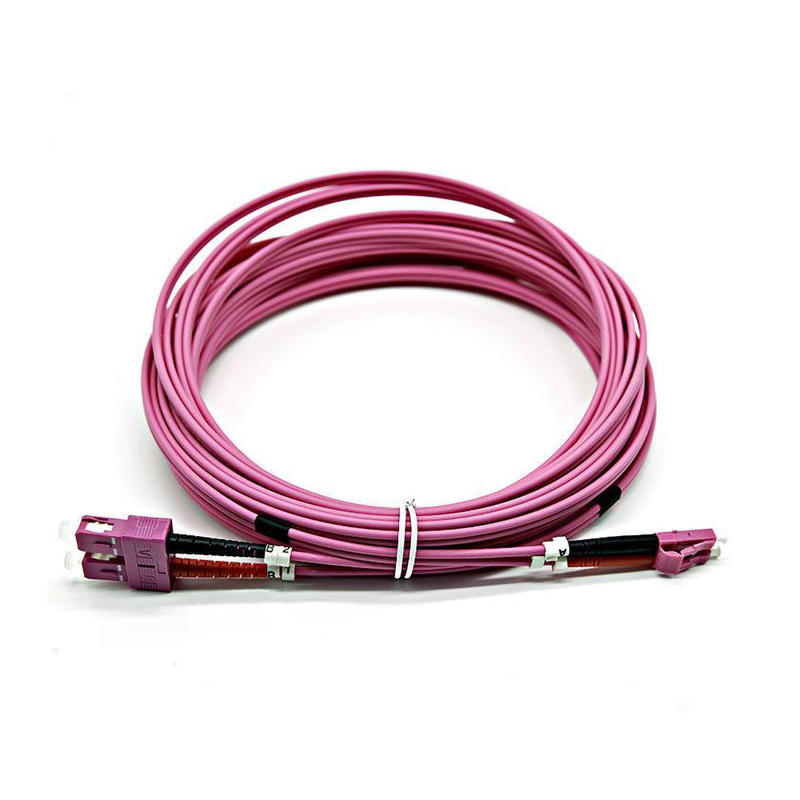

The F102-OPC-2F-OM4 is an OM4 multimode duplex fiber patch cord with 50/125μm core and a 2.0mm LSZH jacket. Available with LC, SC, FC, or ST connectors in PC, UPC, or APC polish options.

Key Features:
• OM4 50/125μm multimode fiber — supports 10Gbps up to 100m, 40G/100G up to 100m
• Duplex configuration for full-duplex transmission
• 2.0mm LSZH jacket — halogen-free, flame-retardant
• Zirconia ceramic ferrules, low insertion loss ≤0.2dB
• 100% optically tested, RoHS compliant
• 1-year warranty, OEM/ODM available

Specifications:
Model: F102-OPC-2F-OM4
Fiber Type: OM4 Multimode 50/125μm
Configuration: Duplex
Connector Options: LC / SC / FC / ST (PC / UPC / APC)
Cable Diameter: 2.0mm LSZH
Insertion Loss: ≤0.2 dB typical
Return Loss: ≥50 dB (UPC) / ≥60 dB (APC)
Length: Customizable (standard 1m–10m)

Applications: 10G/40G/100G Ethernet, data center, enterprise LAN, SAN, and high-performance computing.
