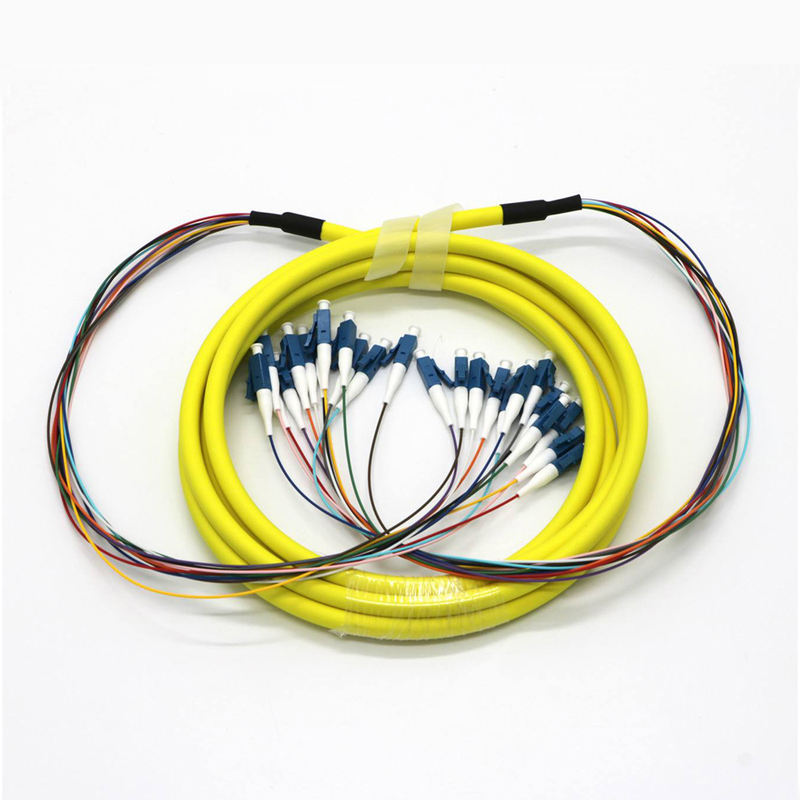

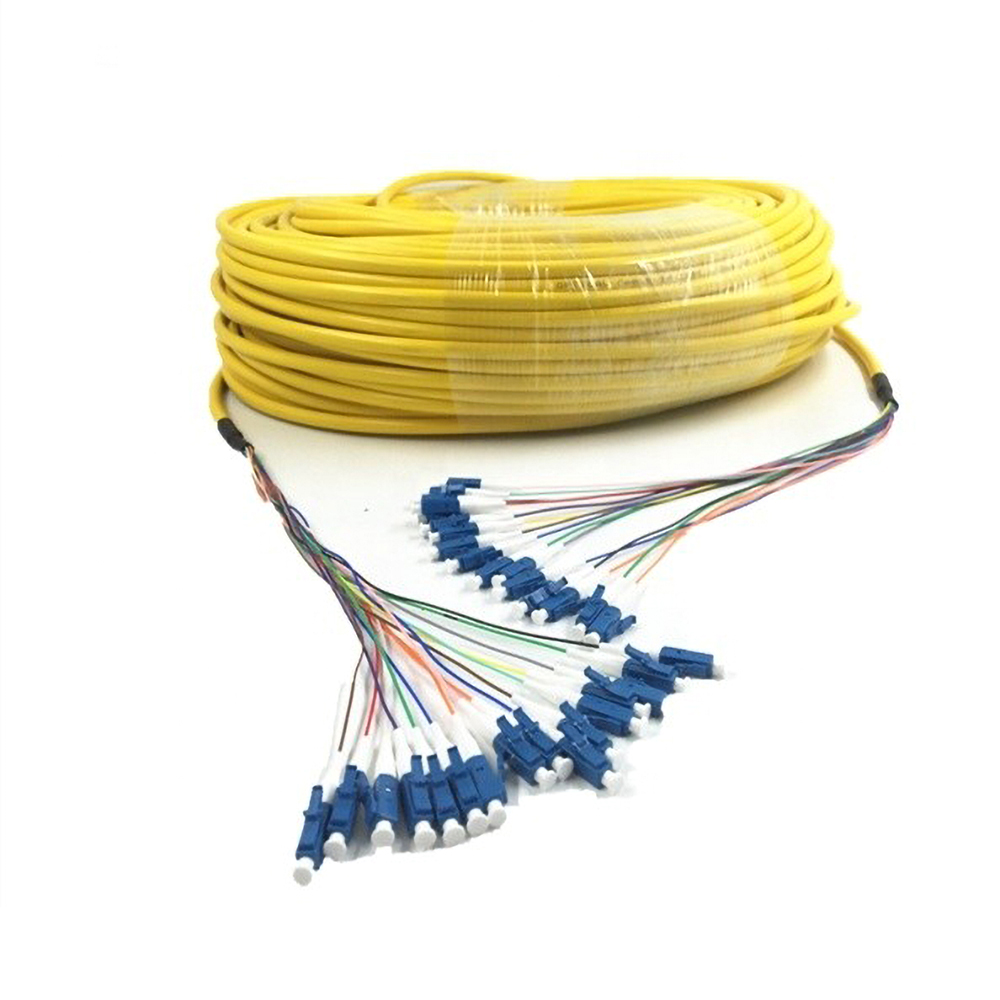

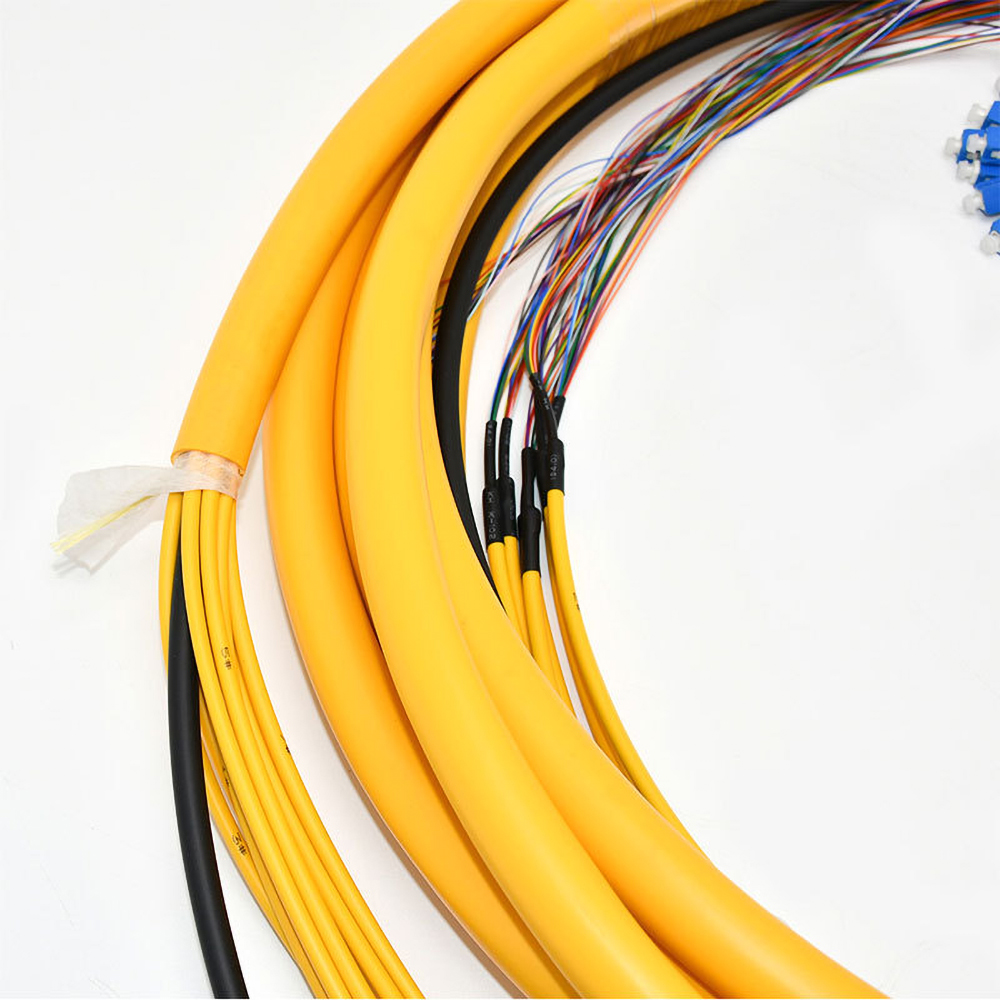

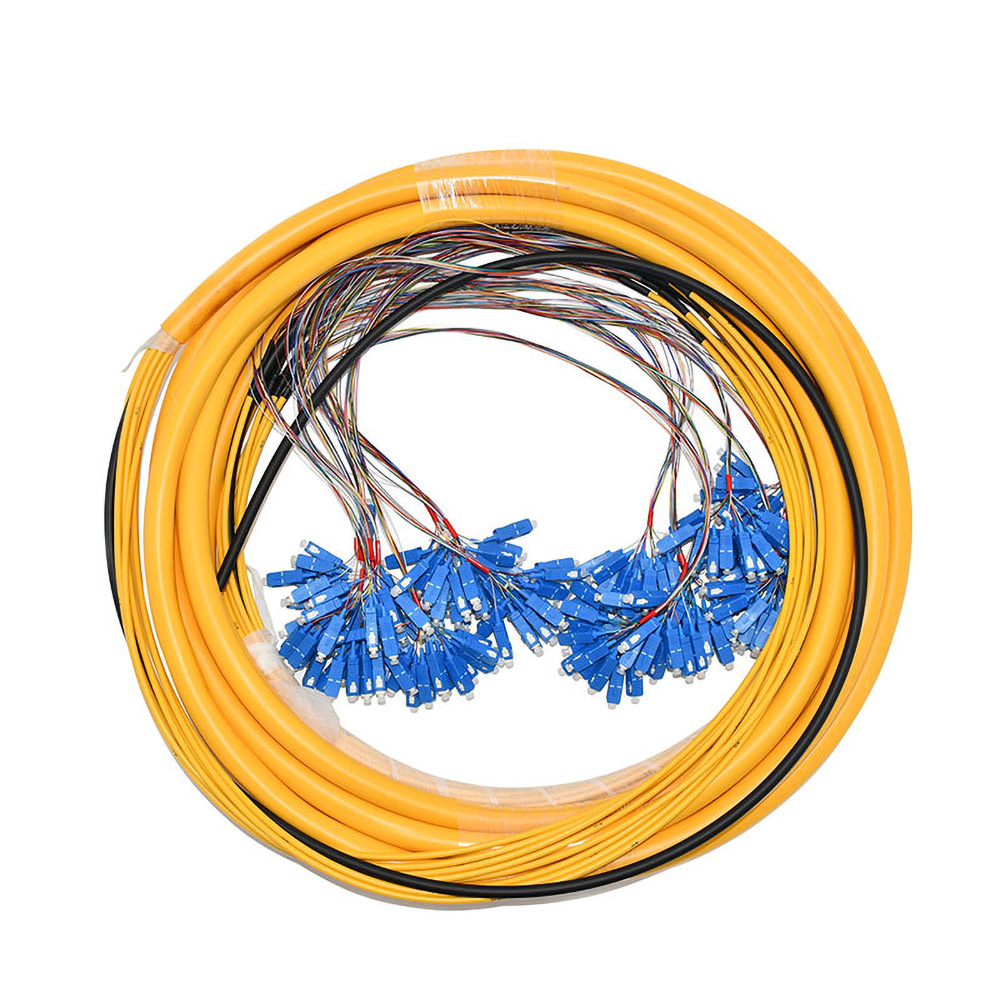

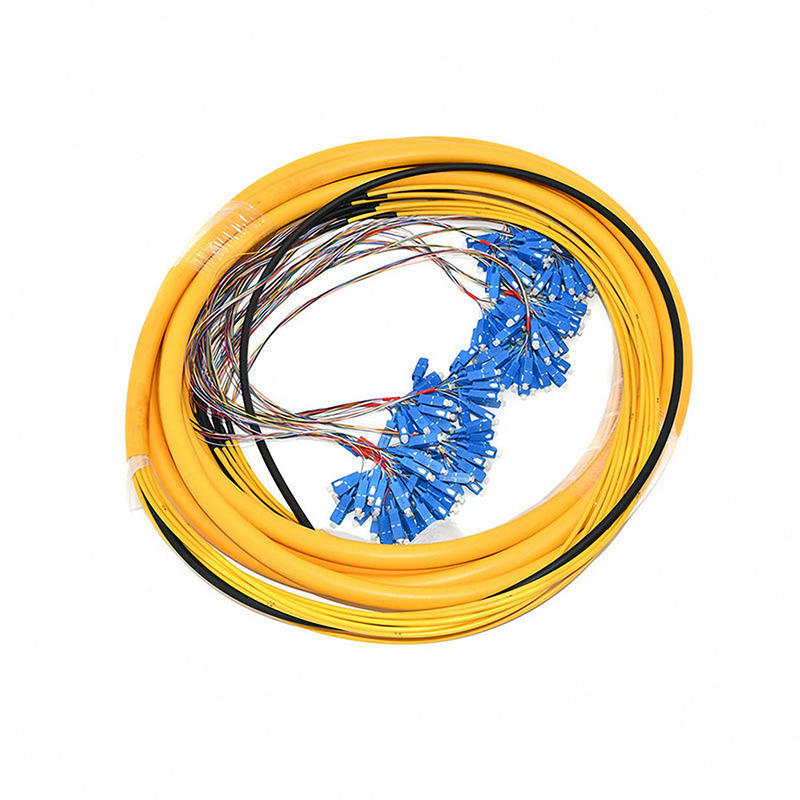

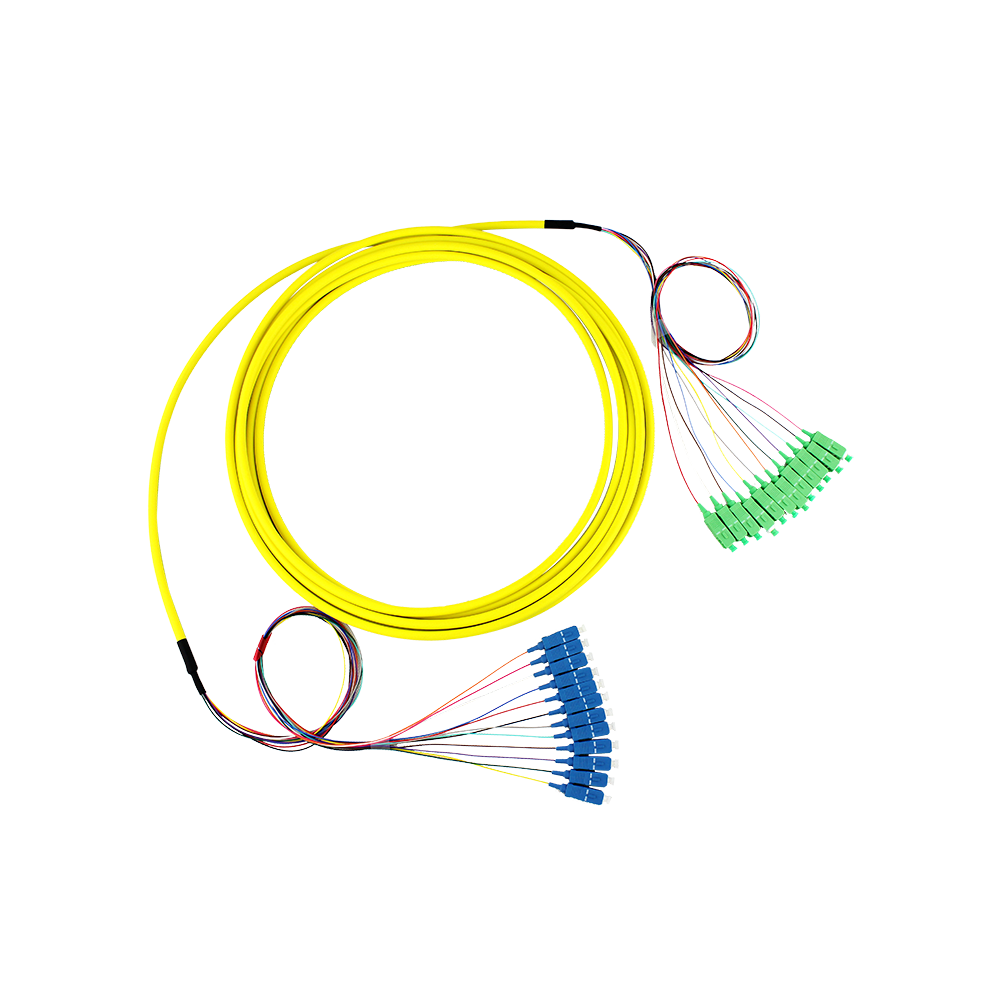

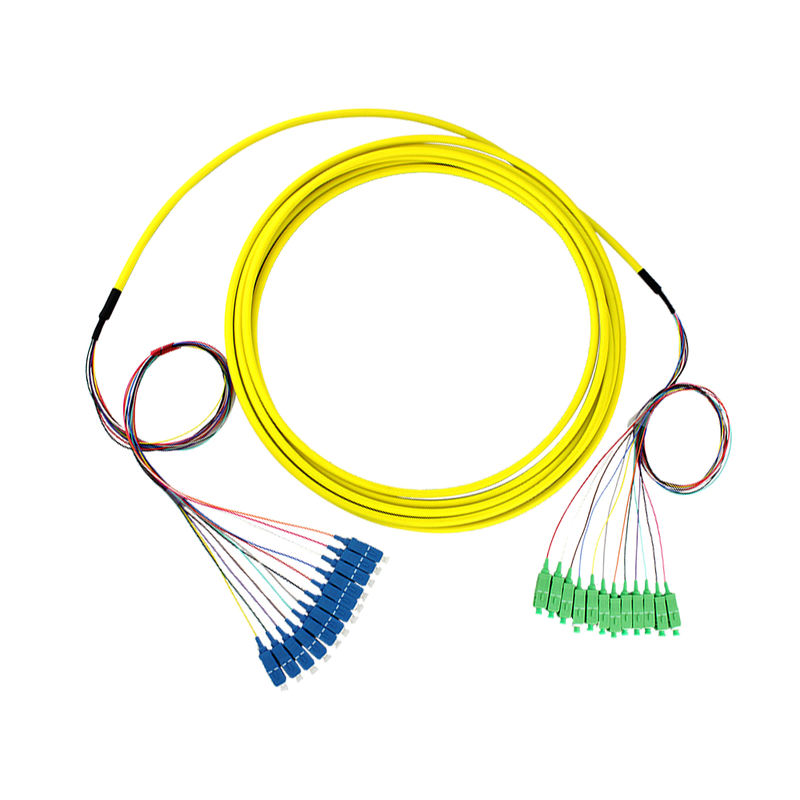

The F103-BOPT is a steel-armored singlemode breakout fiber patch cord. Built with a stainless steel armored layer between the outer jacket and the fiber buffer, it provides superior protection against crushing, bending, and rodent damage for demanding FTTH and telecom deployments.

Key Features:
• Singlemode 9/125μm fiber core for long-reach transmission
• Steel armored construction — crush-resistant, rodent-proof
• LC/UPC connectors with ceramic ferrules
• Breakout design for flexible routing
• Low insertion loss ≤0.2dB, high return loss ≥50dB
• 100% optically tested, RoHS compliant
• 2-year warranty, OEM/ODM available

Specifications:
Model: F103-BOPT
Fiber Type: Singlemode 9/125μm
Configuration: Breakout (custom core count)
Connector: LC/UPC (optional SC/FC/ST)
Cable: Steel-armored, with LSZH outer jacket
Insertion Loss: ≤0.2 dB typical
Return Loss: ≥50 dB (UPC)
Length: Customizable
Warranty: 2 years

Applications: FTTH/FTTx drops, telecom cabinet-to-building runs, wall-through and conduit routing, and industrial environments where cable protection is critical.
