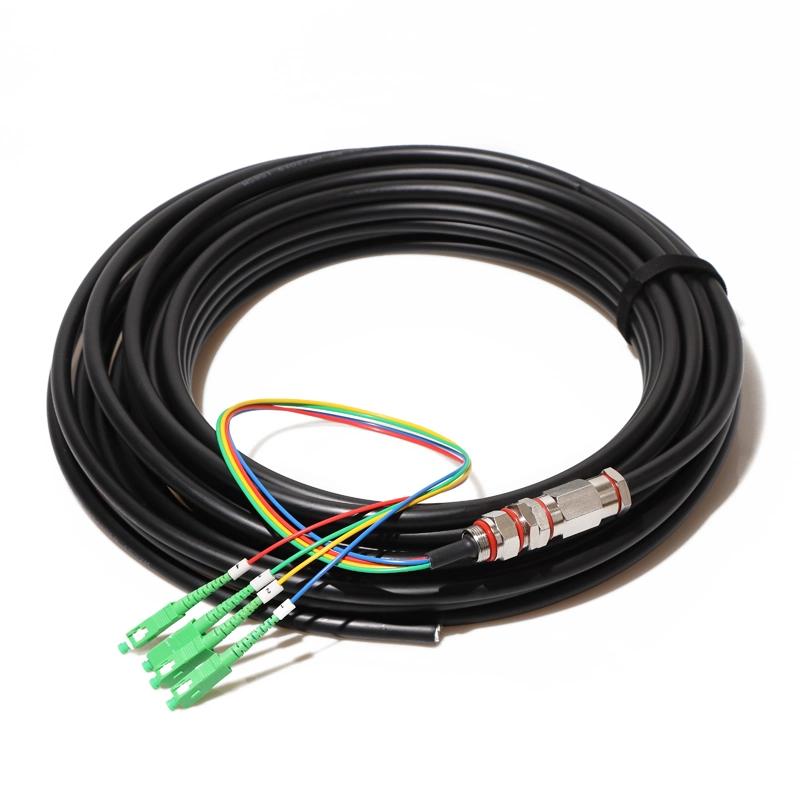

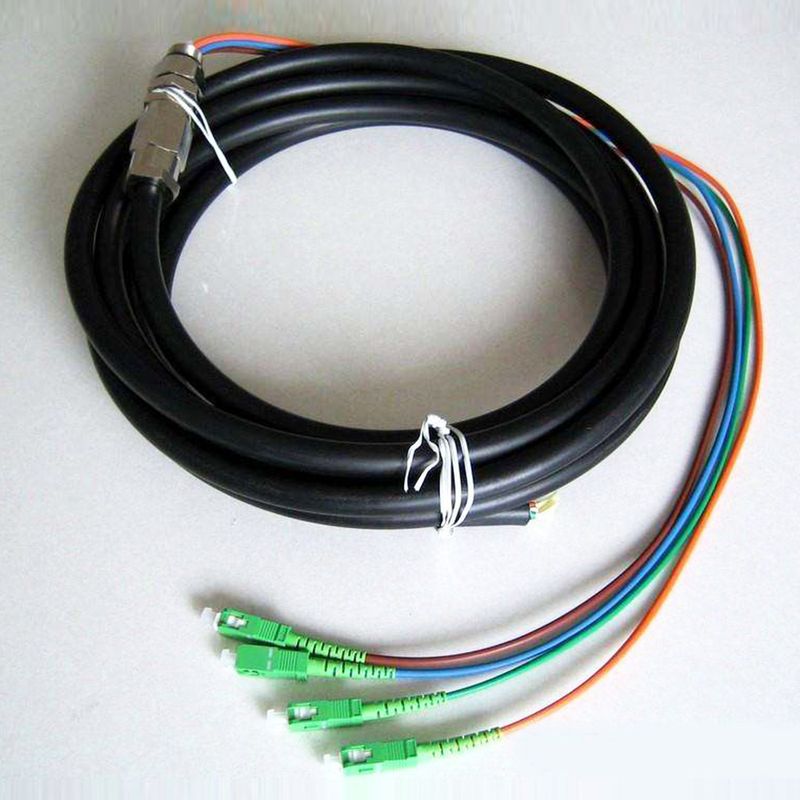

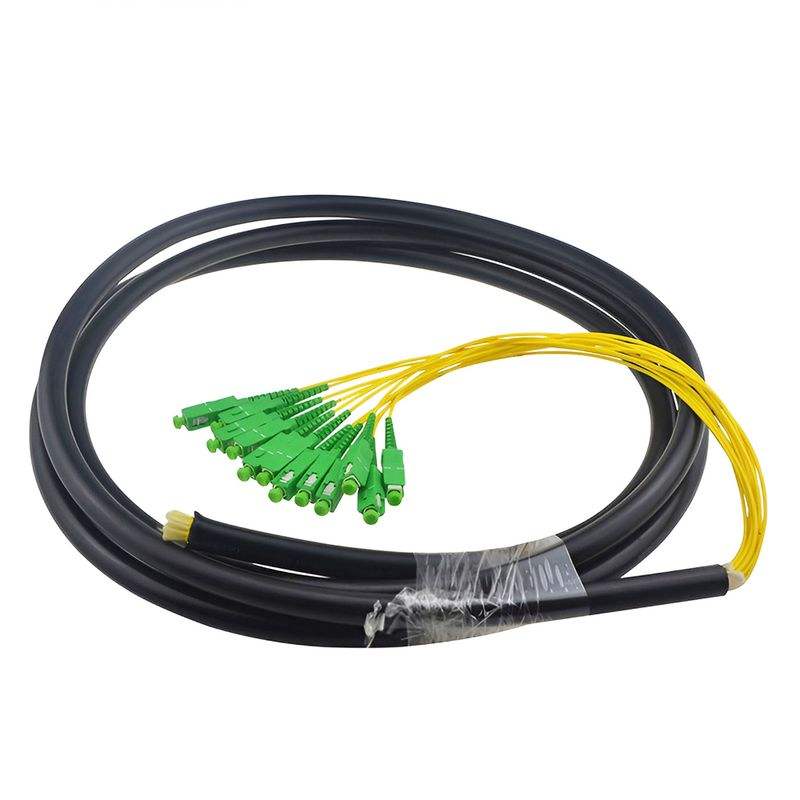

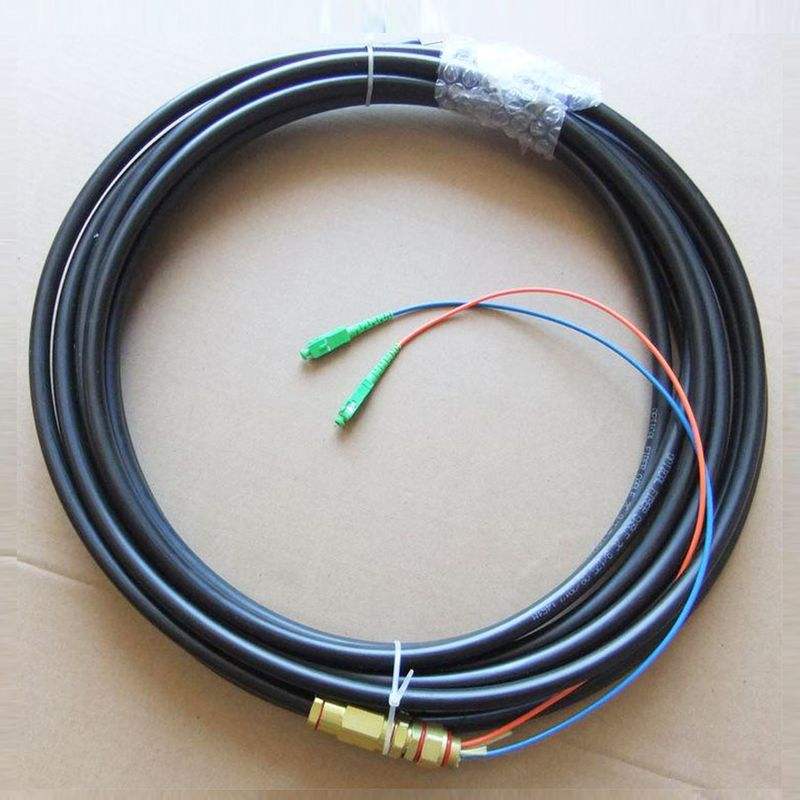

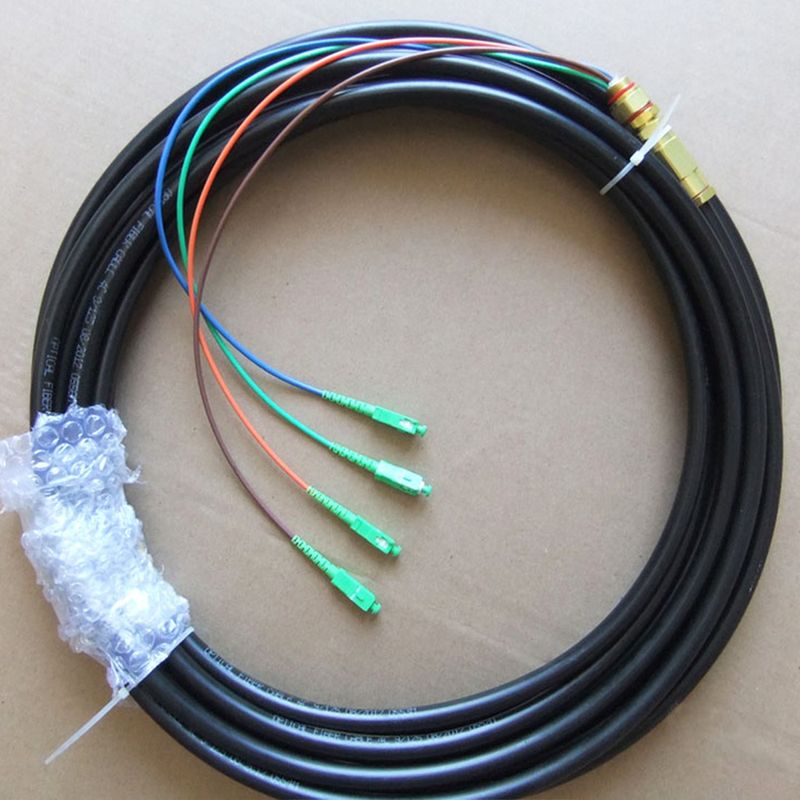

The F101-PGT5 series is an outdoor waterproof armored SC/APC singlemode fiber pigtail designed for FTTx and outside plant (OSP) applications. Available in 2, 4, 6, 8, and 12 core configurations with IP-rated sealing and armored cable protection against moisture, rodents, and mechanical damage.

Key Features:
• SC/APC connectors with ceramic ferrules, ≥60dB return loss
• Outdoor waterproof sealing — IP-rated for OSP and cabinet use
• Armored cable construction — rodent and crush resistant

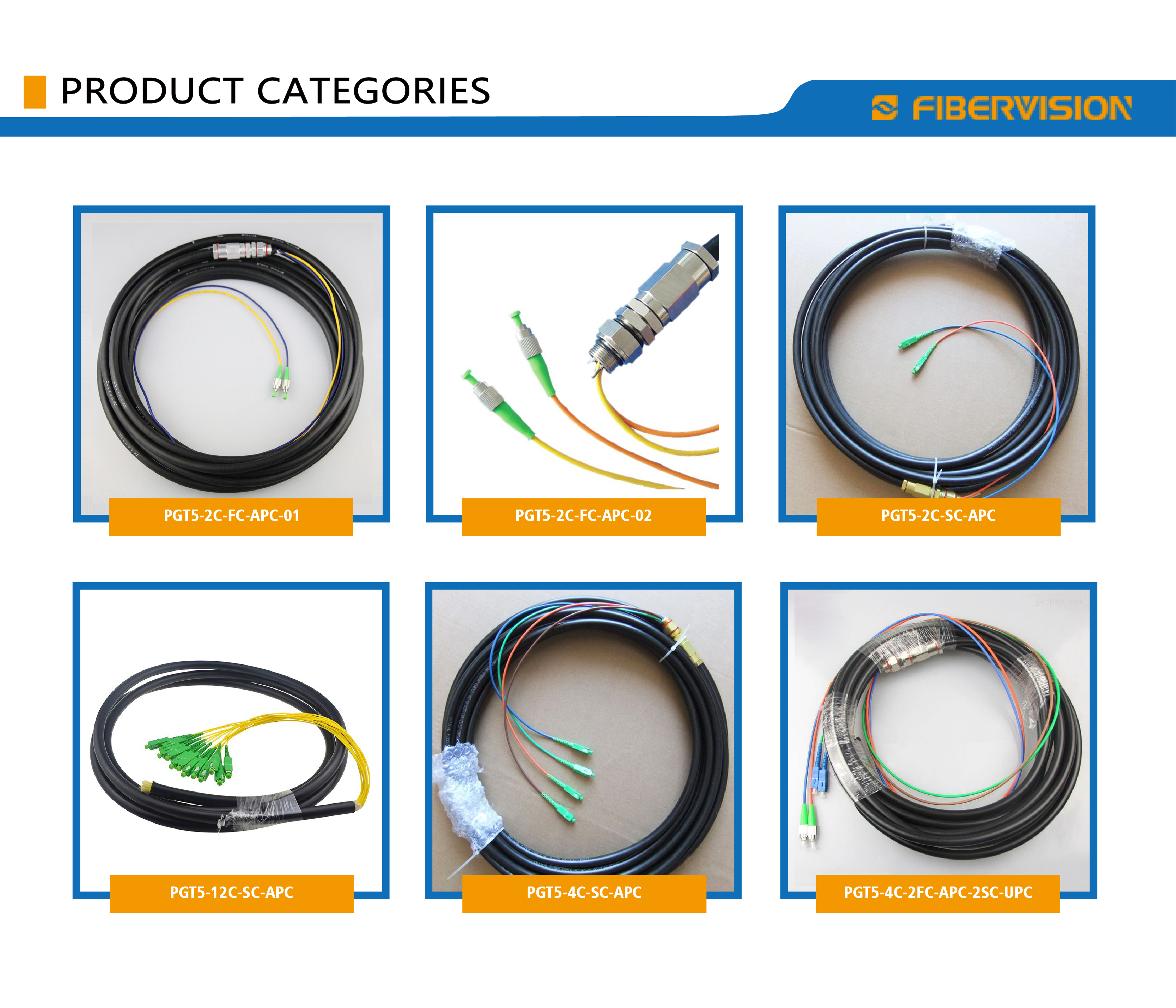

• Available in 2, 4, 6, 8, and 12 core counts
• Singlemode 9/125μm fiber for long-reach FTTx

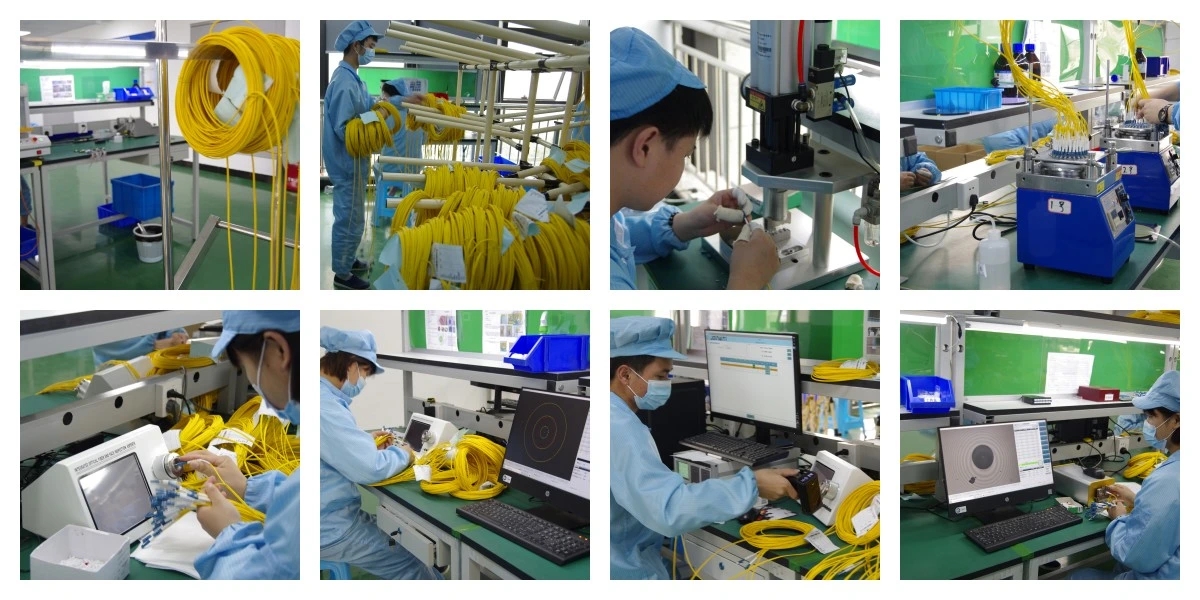

• 100% optically tested, RoHS compliant
• 3-year warranty, OEM/ODM available

Specifications:
Model: F101-PGT5-4C-SC_APC
Fiber Type: Singlemode 9/125μm
Core Options: 2 / 4 / 6 / 8 / 12 cores

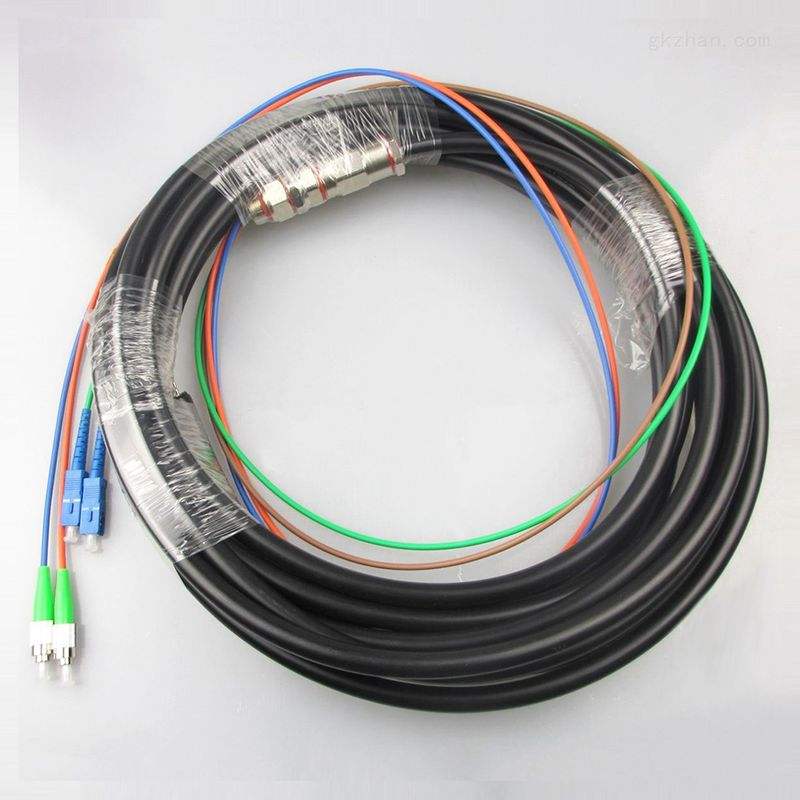

Connector: SC/APC (optional LC/FC/ST)
Cable: Armored, outdoor-rated, waterproof
Insertion Loss: ≤0.3 dB (APC)
Return Loss: ≥60 dB (APC)
Length: Customizable
Warranty: 3 years

Applications: FTTx/FTTH outside plant, ODF and splice closure distribution, outdoor cabinets, BBU/RRU backhaul, and security camera fiber links.
