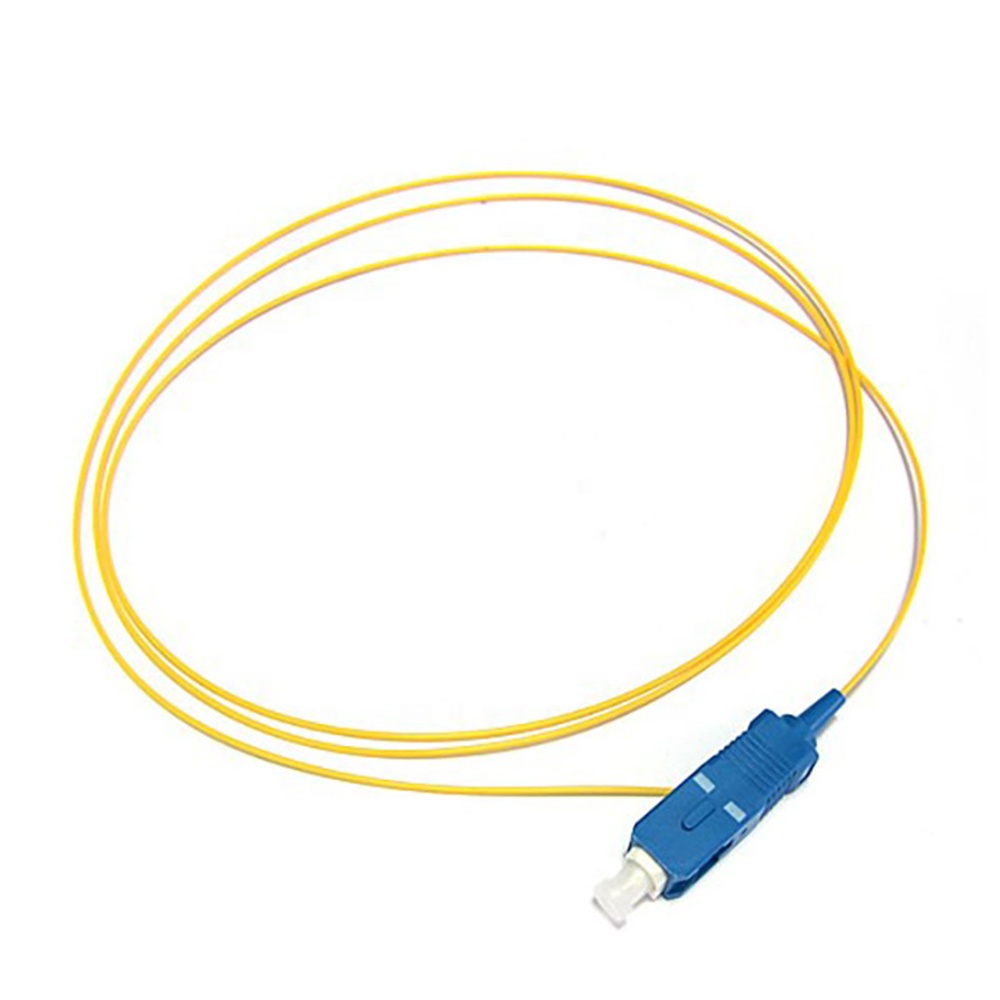

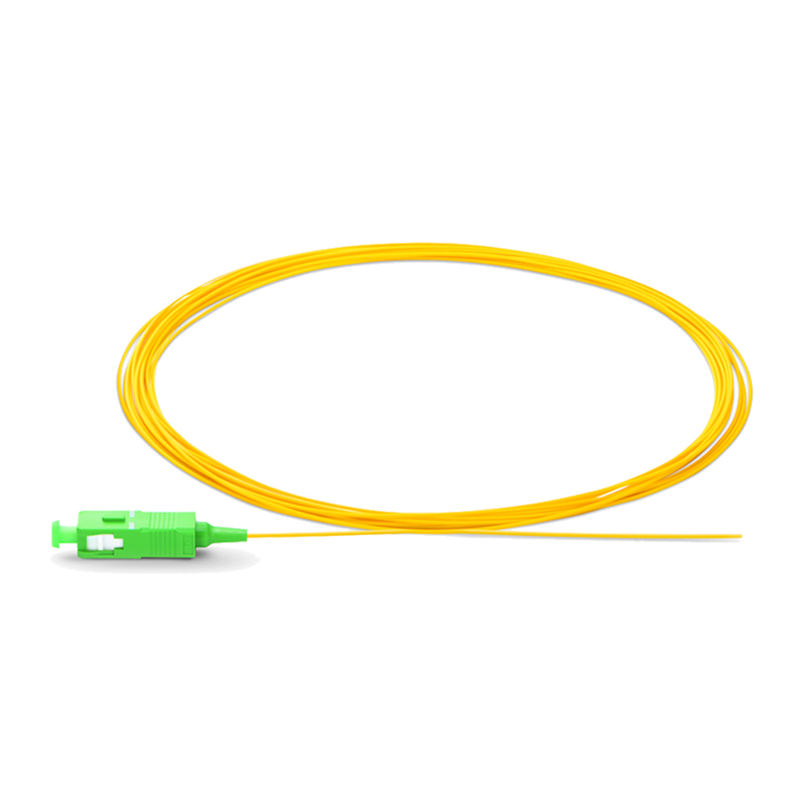

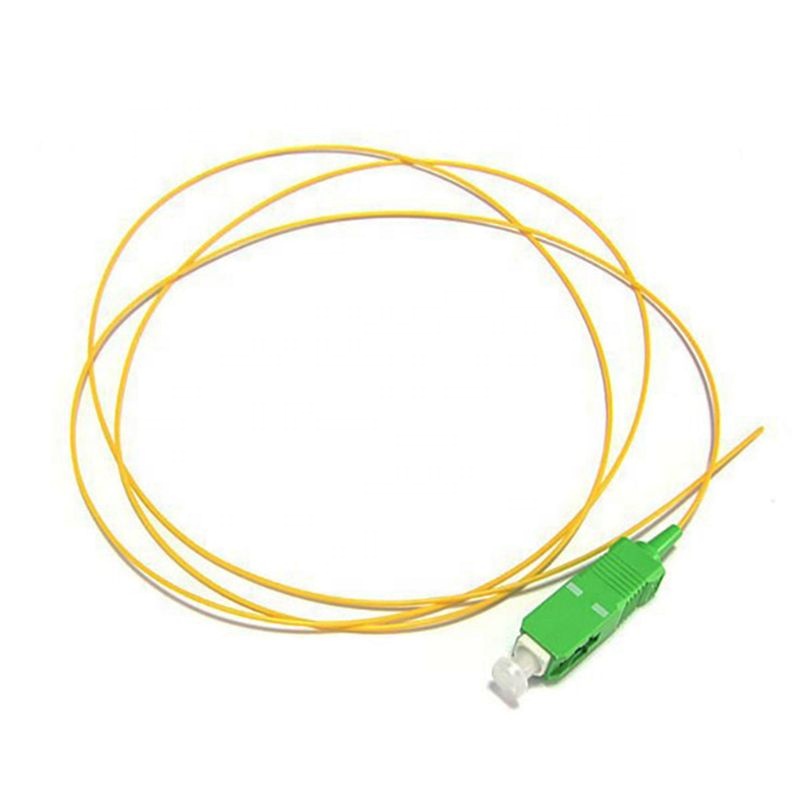

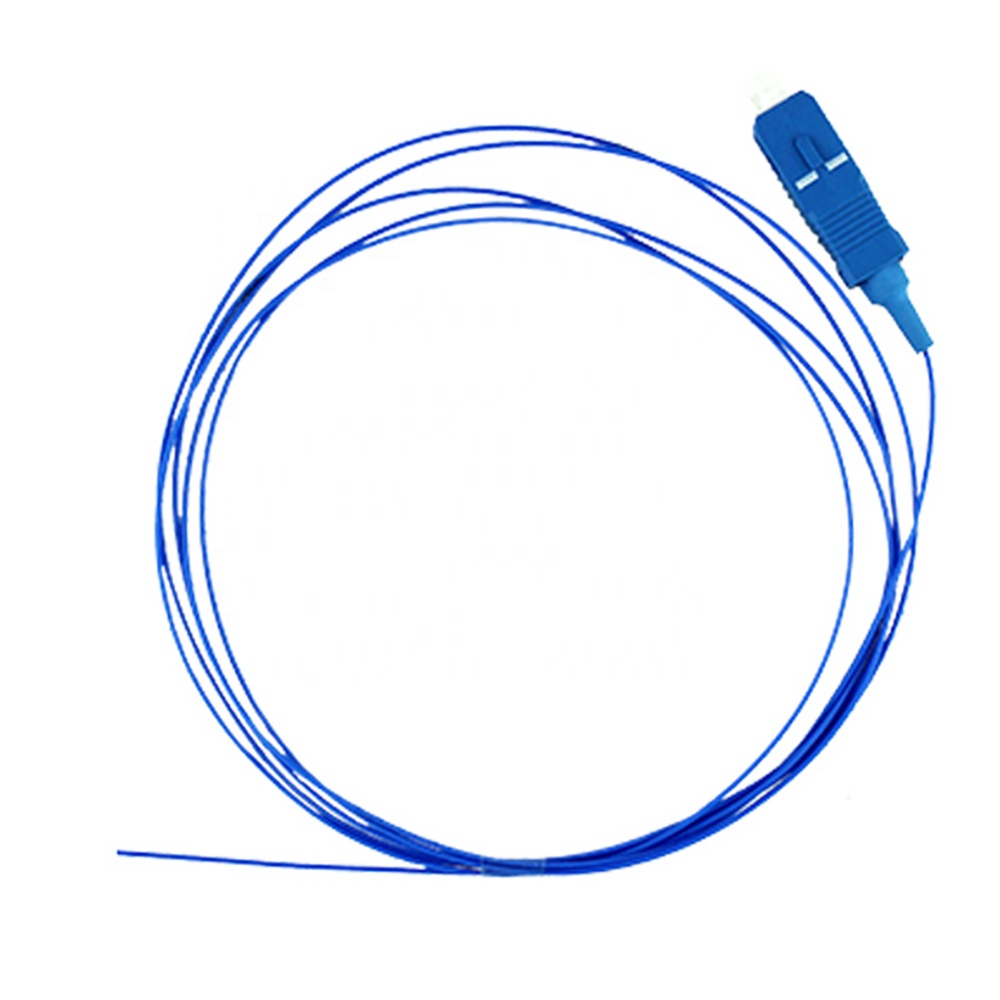

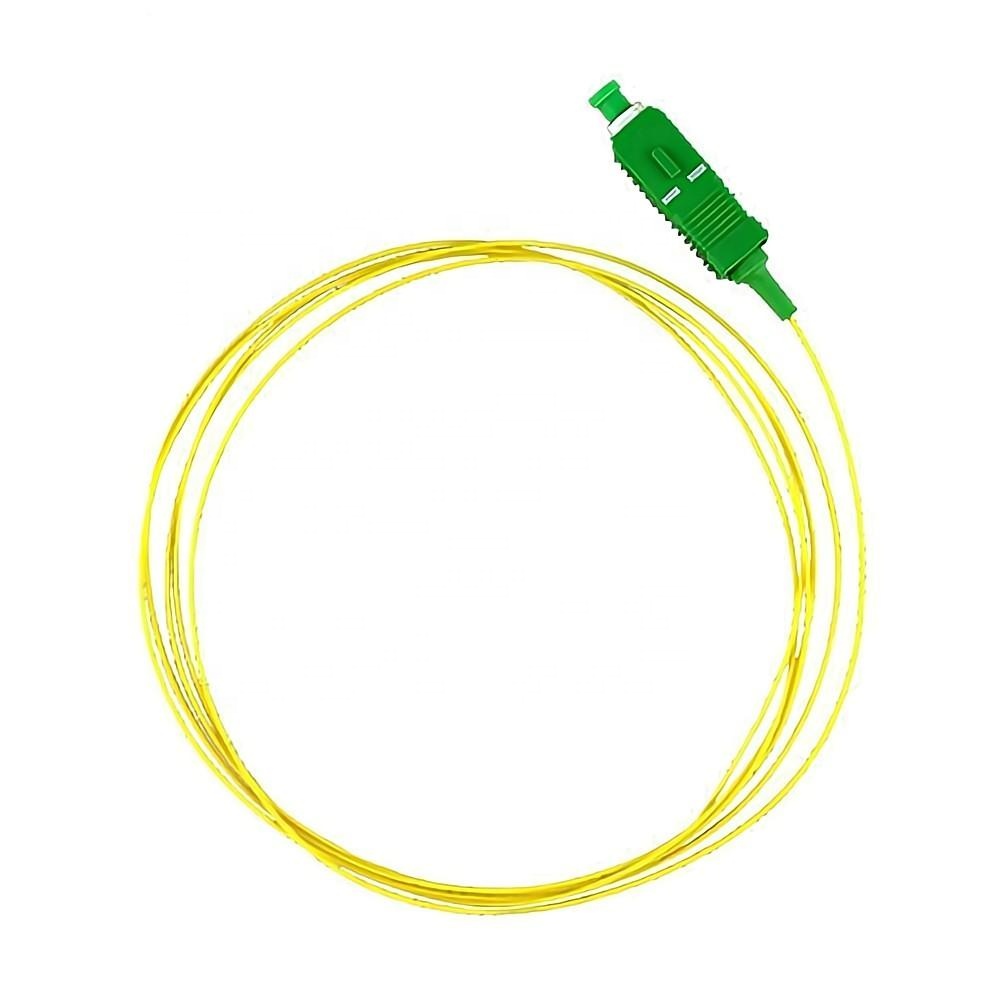

The F102-PGT-1F-SM-SC is a SC/UPC singlemode fiber pigtail with 9/125μm core and 0.9mm buffered fiber. One end pre-terminated with SC connector, the other end bare fiber for splicing. Available in LC, FC, or ST options with UPC or APC polish.

Key Features:
• Singlemode 9/125μm fiber core for long-distance transmission
• 0.9mm tight buffered fiber, flexible for splicing
• Zirconia ceramic ferrule for low loss and precision alignment
• Low insertion loss ≤0.2dB (UPC) / ≤0.3dB (APC)
• High return loss ≥50dB (UPC) / ≥60dB (APC)

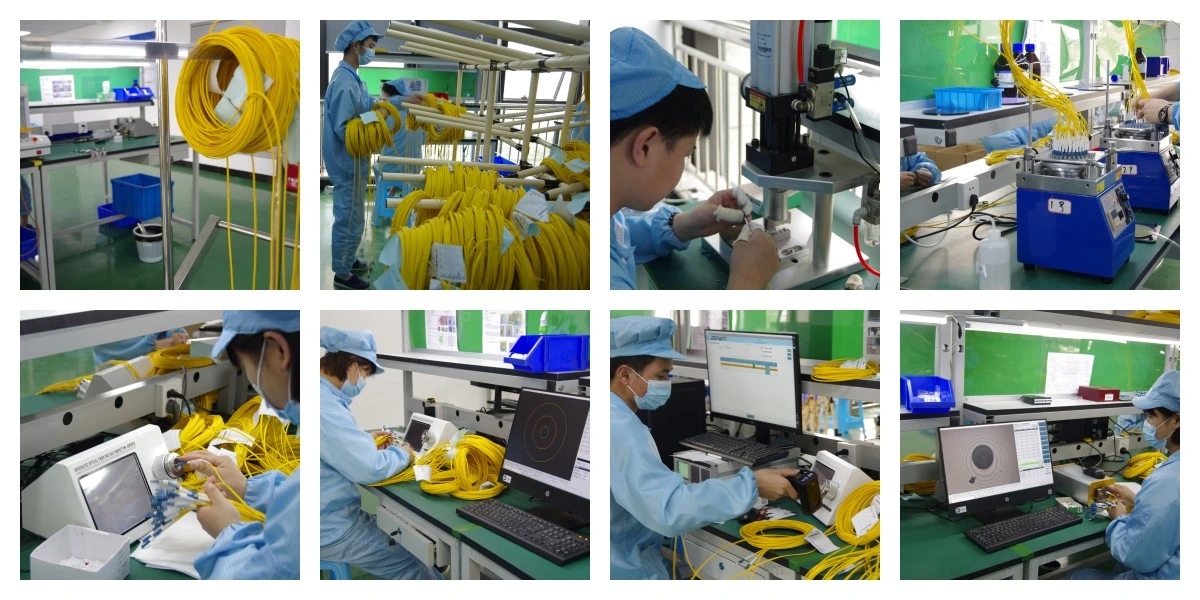

• 100% optically tested, RoHS compliant
• 1-year warranty, OEM/ODM available

Specifications:
Model: F102-PGT-1F-SM-SC
Fiber Type: Singlemode 9/125μm
Configuration: Simplex (one-end connector)
Connector Options: SC / LC / FC / ST (UPC / APC)
Cable: 0.9mm tight buffer
Insertion Loss: ≤0.2 dB (UPC) / ≤0.3 dB (APC)
Return Loss: ≥50 dB (UPC) / ≥60 dB (APC)
Length: 1.5m / 2m (customizable)

Applications: Fiber splicing, ODF patch panels, FTTH/FTTx, telecom networks, and CATV systems.
