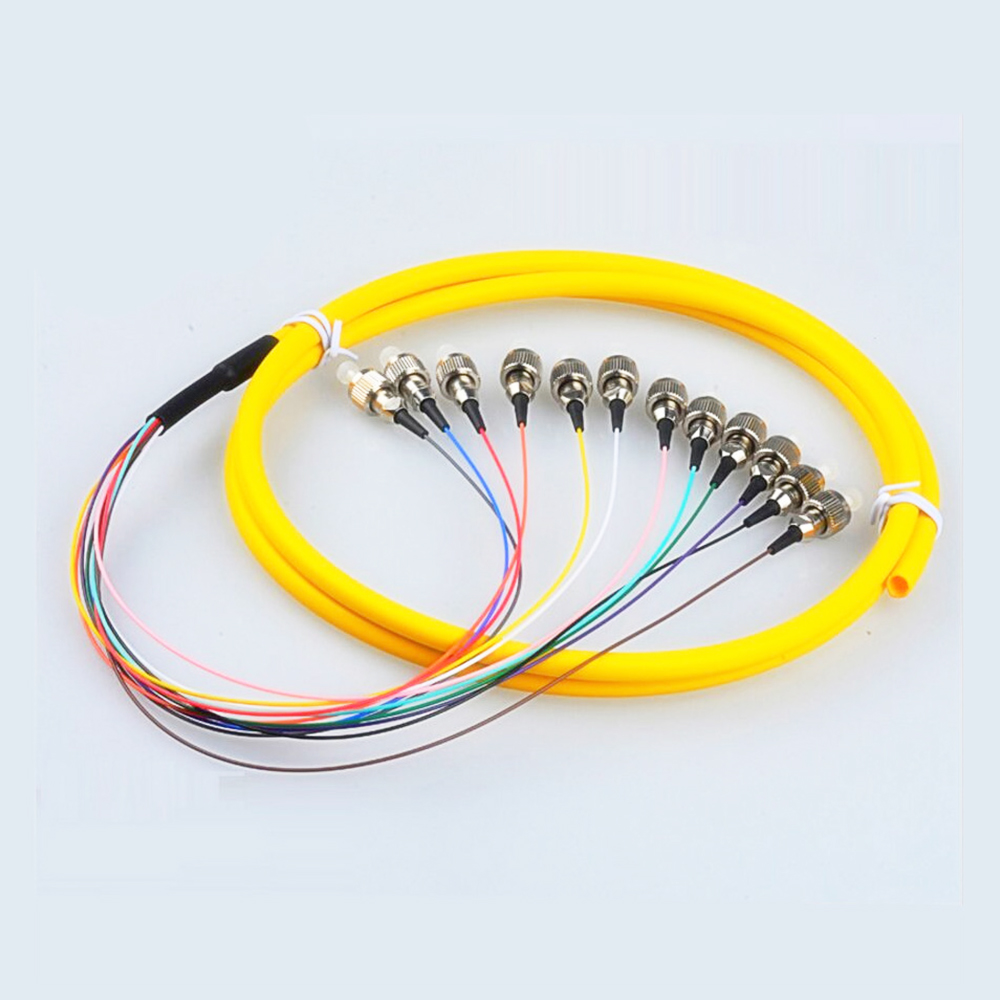

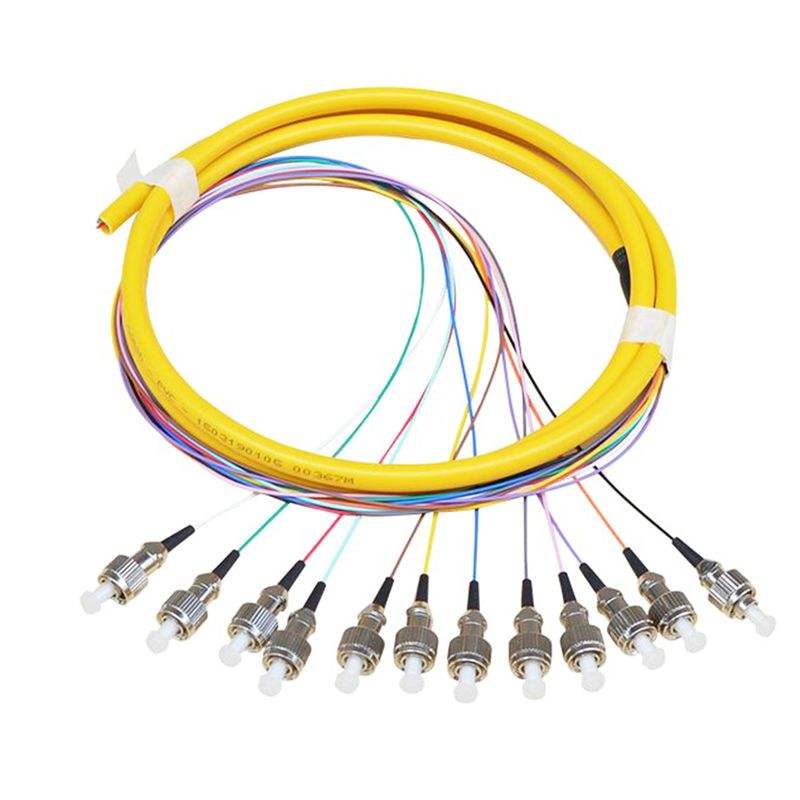

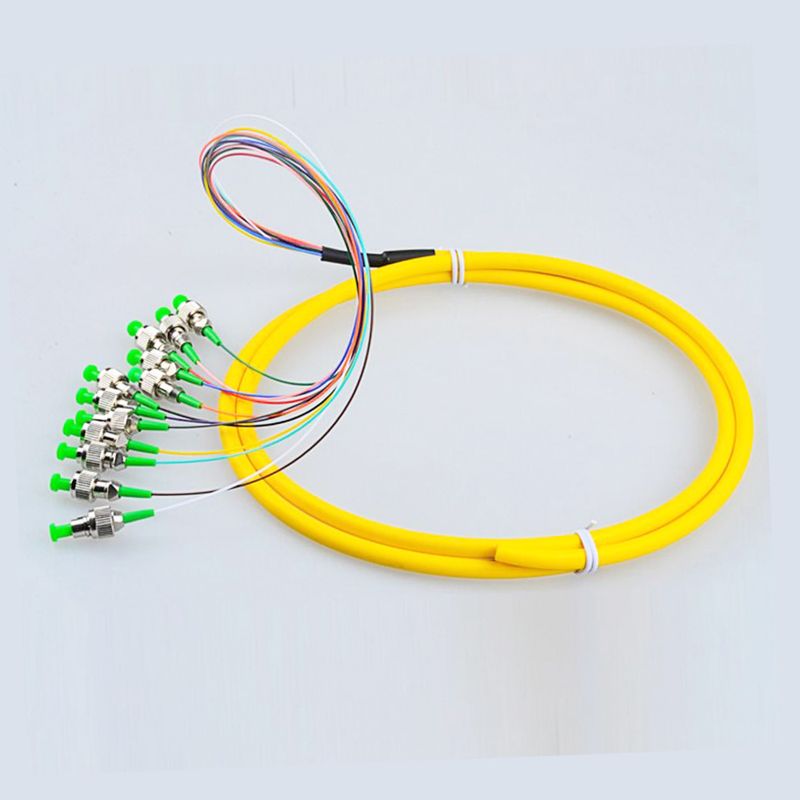

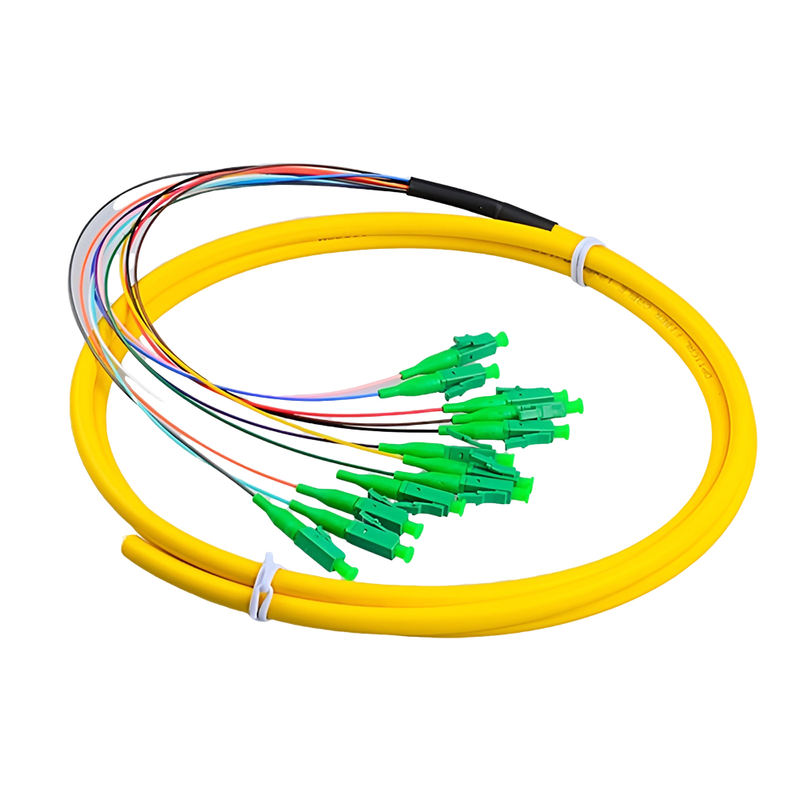

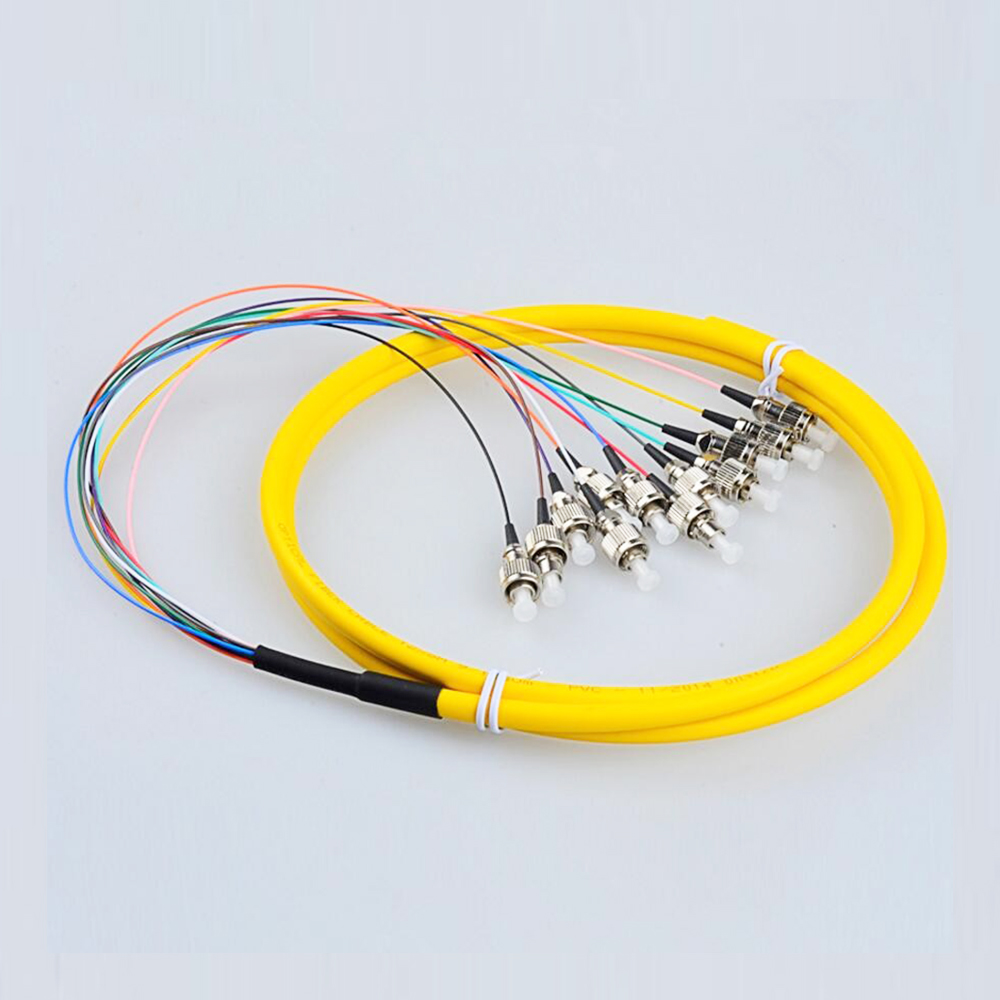

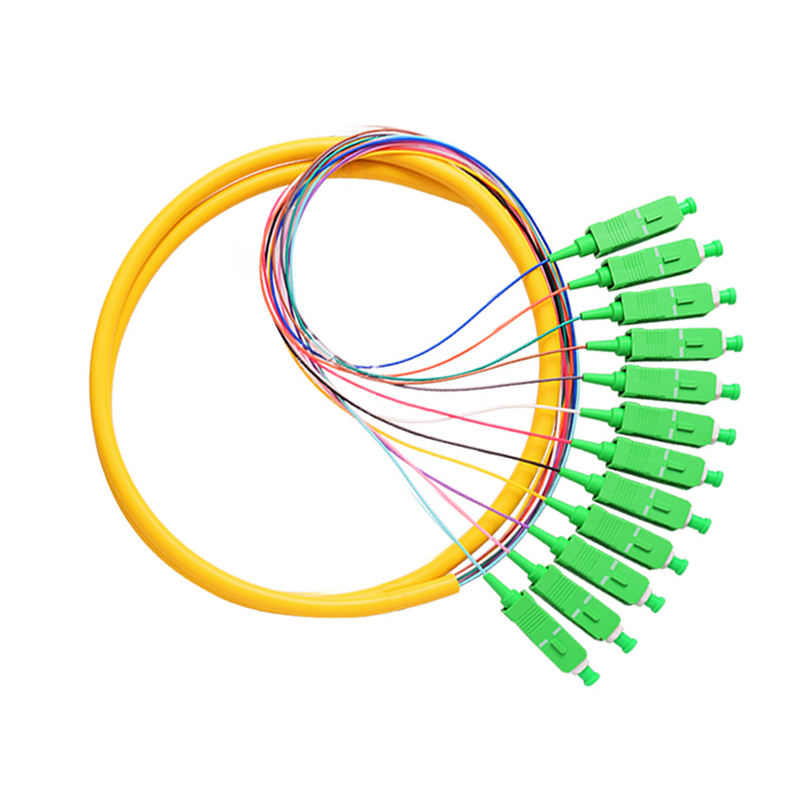

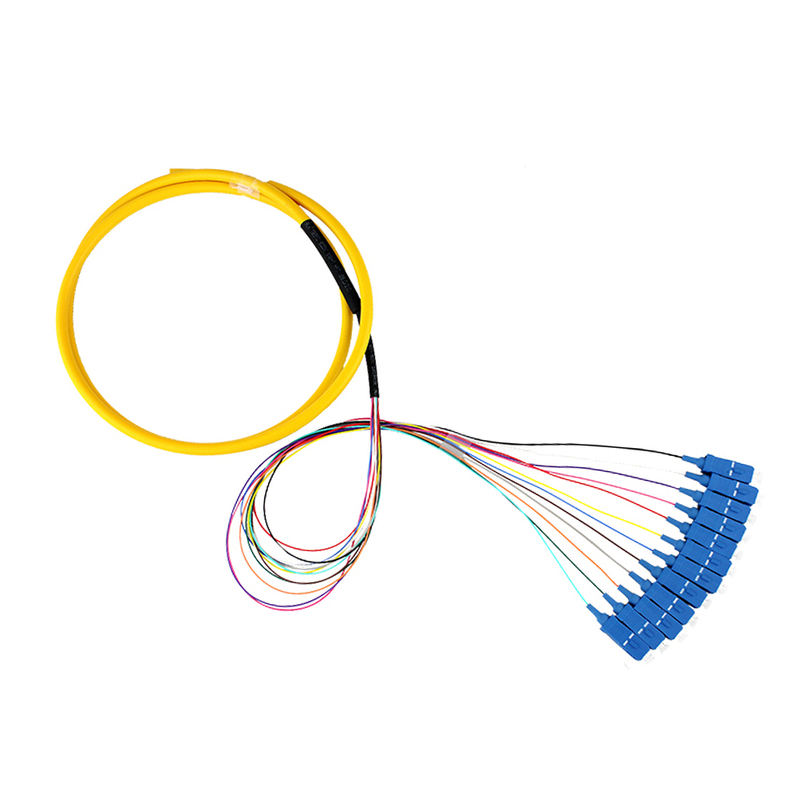

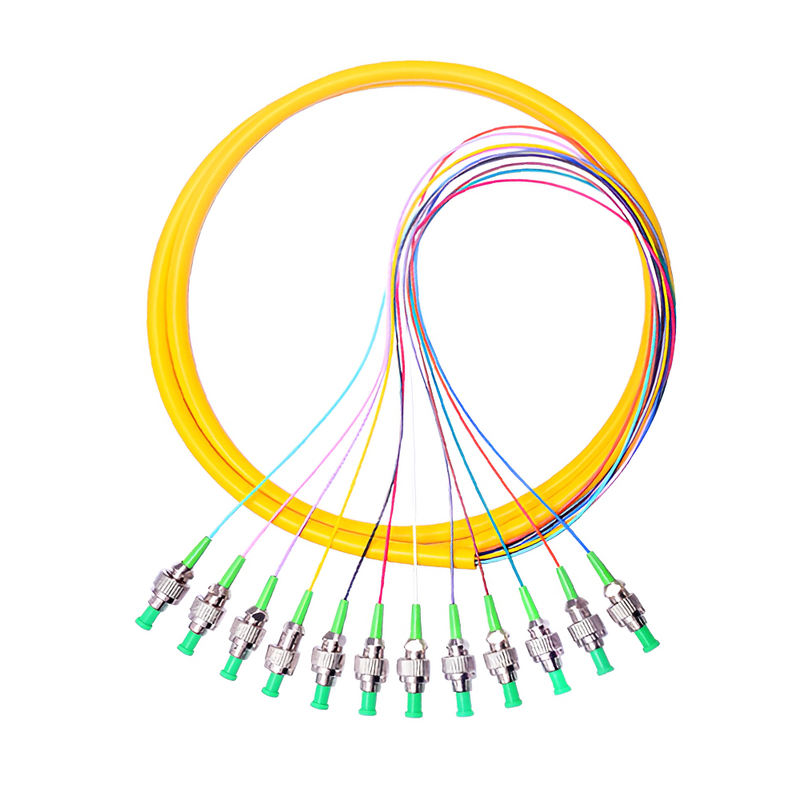

The F101-GPT03 is a 12-core 0.9mm tight buffer breakout fan-out fiber pigtail. It fans out from a single distribution cable into 12 individual 0.9mm tight-buffered fibers, each terminated with a connector — ideal for high-density splicing and distribution.

Key Features:
• Singlemode 9/125μm fiber core
• 12-core fan-out configuration with 0.9mm tight buffer
• Available connectors: SC / FC / LC / ST (UPC / APC)
• LSZH / OFNR / PVC jacket options
• Low insertion loss ≤0.2dB, high return loss
• 100% optically tested, RoHS compliant
• 1-year warranty, OEM/ODM available

Specifications:
Model: F101-GPT03
Fiber Type: Singlemode 9/125μm
Core Count: 12 cores (customizable)
Buffer: 0.9mm tight buffer
Connector Options: SC / FC / LC / ST (UPC / APC)
Jacket: LSZH / OFNR / PVC
Insertion Loss: ≤0.2 dB typical
Return Loss: ≥50 dB (UPC) / ≥60 dB (APC)
Operating Temperature: -20°C ~ +70°C
Length: Customizable

Applications: ODF patch panels, PLC splitter splicing, FTTH/FTTx distribution cabinets, and data center high-density cabling.
